Xtreme solid V Wheel Kit (1 Stk.)

Beschreibung

v-Slot Kunststoffrollenlager Kit, Verpackungseinheit 1 Stück.

Anleitung zu Aufbau erhalten Sie hier:

docs:mechanical:v-wheel-assembly [OpenBuilds Documentation]

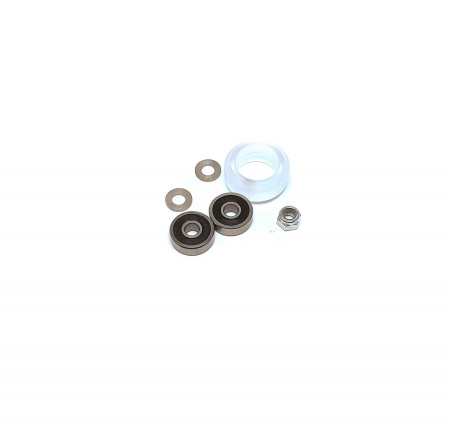

Das Kit beinhaltet:

(1) OpenBuilds Xtreme Solid V Wheel
(2) Ball Bearings – 625 2RS
(2) 5mm Precision Shim
(1) Lock Nut with Nylon Insert

Also, be sure to grab the screws and spacers of your choice here:
Low Profile Screw (25mm for use with 1/8″ Plate and 30mm for 1/4″ Plates)
Aluminum Spacers (choose between 6mm and 1/4″)
Eccentric Spacers (choose between 6mm and 1/4″)

Part Details
Material – Polycarbonat (clear)
Dimensions 23.90 OD x 16 ID x 10.23 ‘thick’
Rockwell Hardness M75
Compressive Strengh 86Mpa

IMPORTANT Only use silicone for lubrication on these polycarbonate wheels if needed. DO NOT use synthetic lubricating oils or cutting oils.
